# Setting Printer Windows 11

### <mark style="color:red;">**Wajib Dibaca Sebelum Melakukan Setting**</mark>

1. **Driver printer sudah terinstal** di perangkat (komputer/laptop).\
   Sesuaikan driver dengan **tipe printer** dan **sistem operasi** yang digunakan.

2. **Terdapat 2 jenis printer:**

<table><thead><tr><th width="134.9522705078125"></th><th>Printer Sharing (Berbagi)</th><th>Printer Non-Sharing (Lokal)</th></tr></thead><tbody><tr><td><strong>Definisi</strong></td><td>Printer terhubung ke jaringan, memungkinkan <strong>beberapa komputer di jaringan yang sama</strong> untuk mengirim tugas cetak ke satu.</td><td>Printer terhubung langsung <strong>ke satu komputer</strong> (misalnya pakai kabel USB) dan <strong>hanya bisa digunakan oleh komputer tersebut</strong>.</td></tr><tr><td><strong>Konektivitas</strong></td><td>Melalui <strong>jaringan (LAN, WiFi) atau koneksi nirkabel</strong>, bukan hanya USB ke satu komputer.</td><td>Lokal, <strong>langsung ke satu komputer</strong>.</td></tr></tbody></table>

3. **Catatan Penting untuk Printer Sharing**

* Untuk **printer sharing**, proses **Create a New Form / Custom Paper Size** **WAJIB dilakukan di komputer utama** (komputer yang terhubung langsung ke printer).
* Setelah custom paper size dibuat di komputer utama:
  * Komputer lain yang menggunakan printer sharing **akan otomatis mendapatkan** opsi paper size tersebut.
* **Pastikan komputer utama selalu terhubung**, karena:
  * Jika setup dilakukan **bukan di komputer utama**, biasanya opsi **custom paper size tidak akan muncul**.
  * Printer sharing bergantung pada koneksi ke komputer utama.

### <mark style="color:red;">**Cara Setting Printer Faktur SimpliDOTS**</mark> <a href="#cara-setting-printer-faktur-simplidots" id="cara-setting-printer-faktur-simplidots"></a>

**Step 1:** Buka **control panel.**

<figure><img src="https://panduan-dms.simplidots.id/~gitbook/image?url=https%3A%2F%2F1936324811-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252F-MMsbbXMQxBVcIuCn-j4%252Fuploads%252FiokgZexrvK2Ie0aL1jya%252F2f158fd4-db05-41ad-9623-69e2045cc1d3.jpeg%3Falt%3Dmedia%26token%3D3187e65d-e5f7-4223-8f81-d85769c88052&#x26;width=768&#x26;dpr=4&#x26;quality=100&#x26;sign=febe8609&#x26;sv=2" alt=""><figcaption></figcaption></figure>

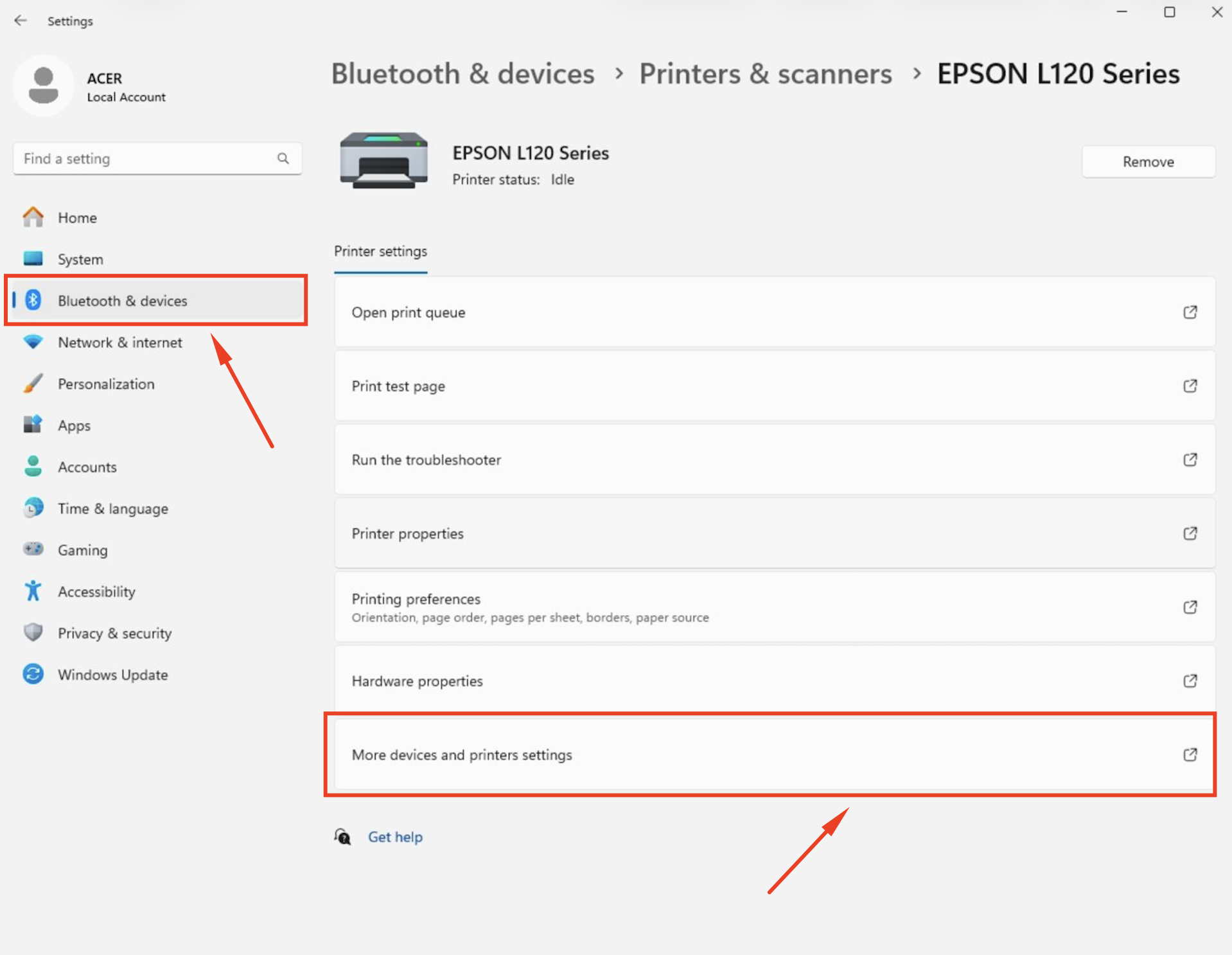

**Step 2:** Kemudian klik **Bluetooth & Devices** >  Klik **More Devices and Printer Settings**.

<figure><img src="/files/U3ZyepLx6Abj8V7zPHfj" alt=""><figcaption></figcaption></figure>

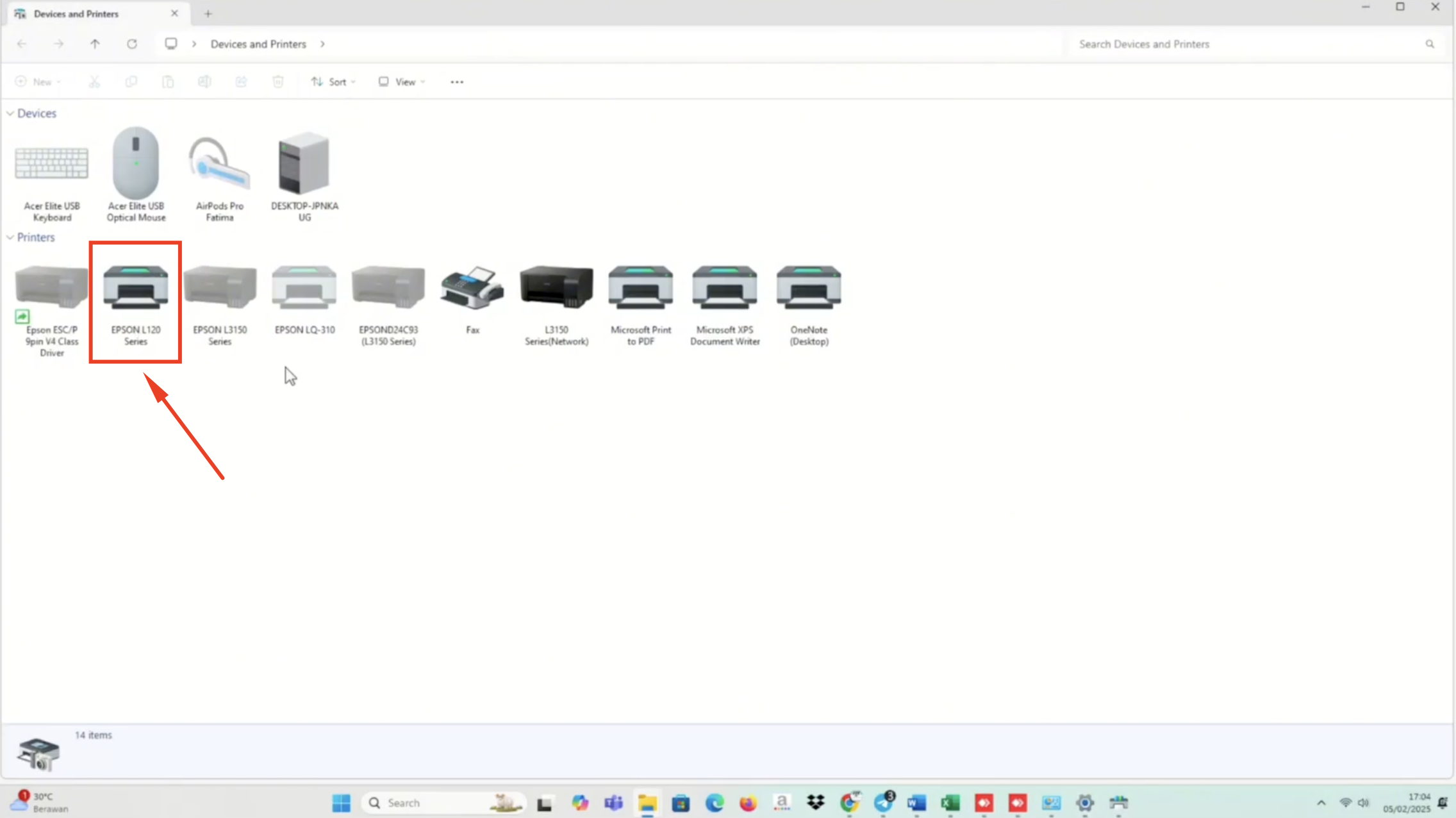

**Step 3:** Pilih printers yang akan di setting, contohnya disini saya pilih **EPSON L120 Series.**

<figure><img src="/files/gRE7zCtLsNd4vfHS4DTt" alt=""><figcaption></figcaption></figure>

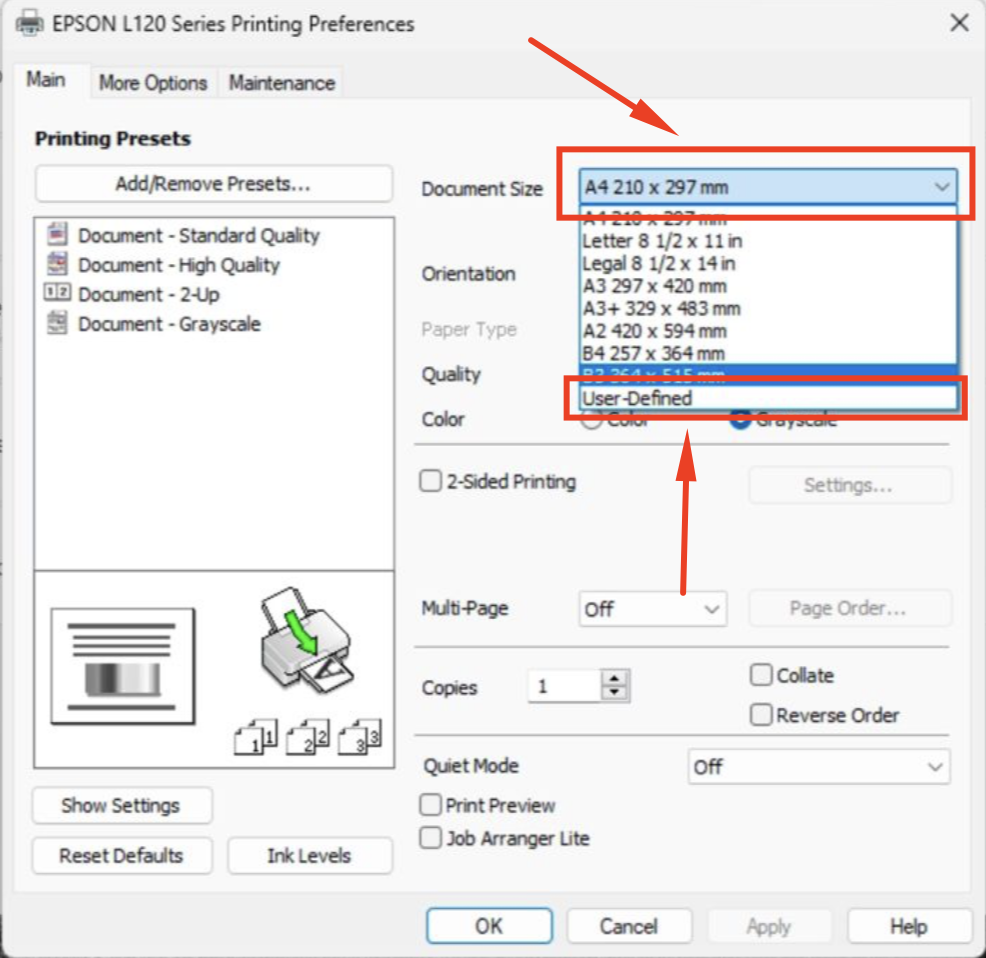

**Step 4:** Akan masuk ke halaman **Series Printing Preferences**. Kemudian klik **Document Size** > Pilih **User-Defined**.

<figure><img src="/files/9VORjxn4d17NFsm6Kor4" alt="" width="563"><figcaption></figcaption></figure>

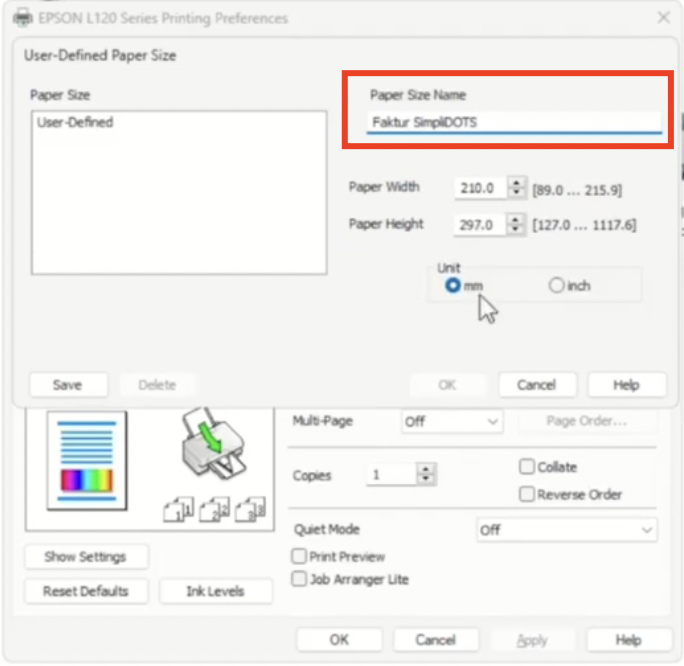

**Step 4:** Beri nama **Faktur SimpliDOTS** pada **Paper Size Name.**

<figure><img src="/files/JaJOozeDJw2RtdwMFE5V" alt="" width="513"><figcaption></figcaption></figure>

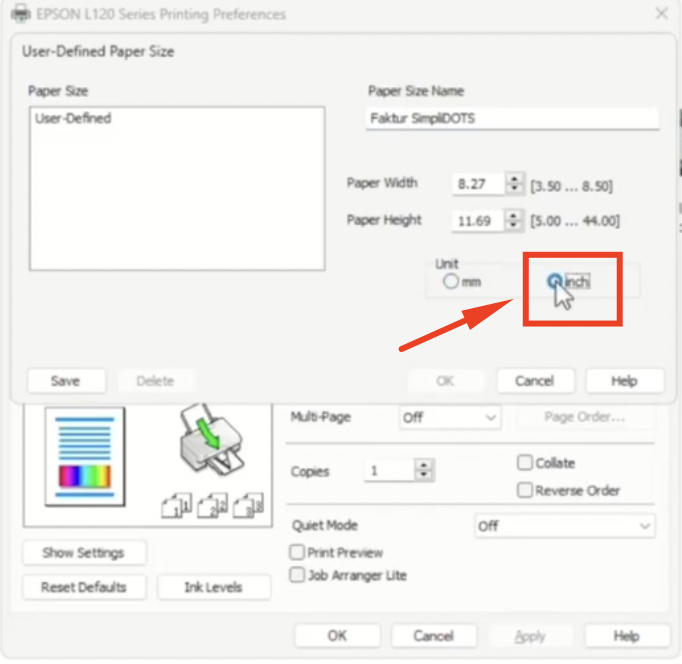

**Step 5:** Pada **Unit** silakan pilih **Inch**.

<figure><img src="/files/eHedfbOMxSYlXOrCu4SI" alt="" width="512"><figcaption></figcaption></figure>

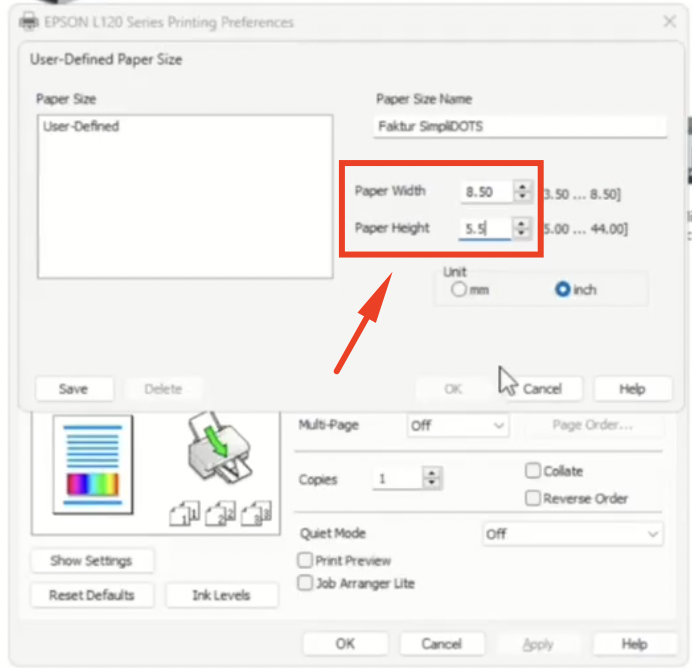

**Step 6:** Atur **print area margins**.

* Paper Width: **8.50**
* Paper Height: **5.50**

<figure><img src="/files/zb5Xi9boaT7H0HZZHaHb" alt="" width="519"><figcaption></figcaption></figure>

**Step 7:** Klik tombol **Save**.

<figure><img src="/files/EUsUdv7pxf3IkLmLdaRa" alt="" width="515"><figcaption></figcaption></figure>

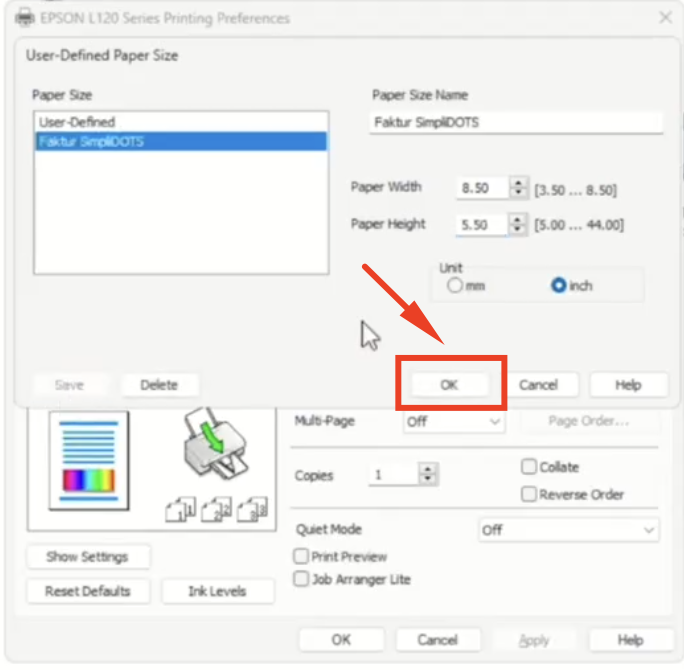

**Step 8:** Klik tombol **OK**.

<figure><img src="/files/PrssYTUFsGE0XOdVo0Jx" alt=""><figcaption></figcaption></figure>

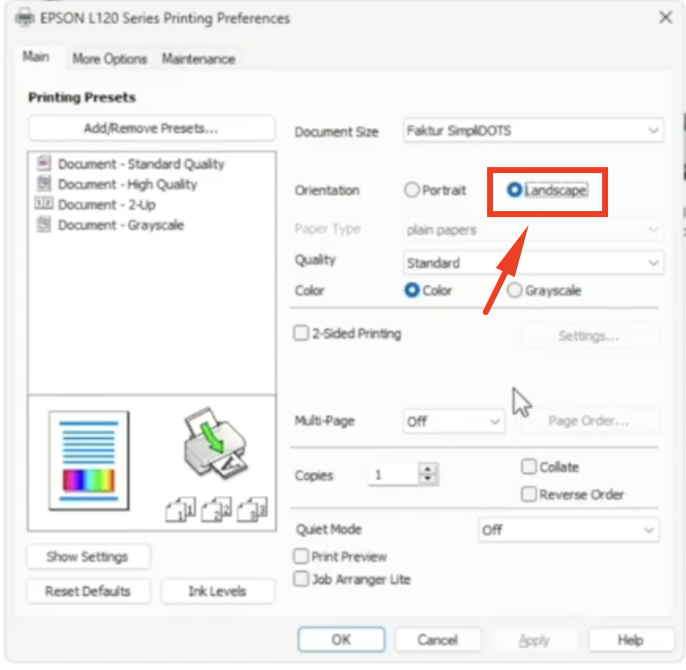

**Step 9:** Klik **Landscape**.

<figure><img src="/files/cDt2NTKW6F8H2kpb8ZSu" alt="" width="515"><figcaption></figcaption></figure>

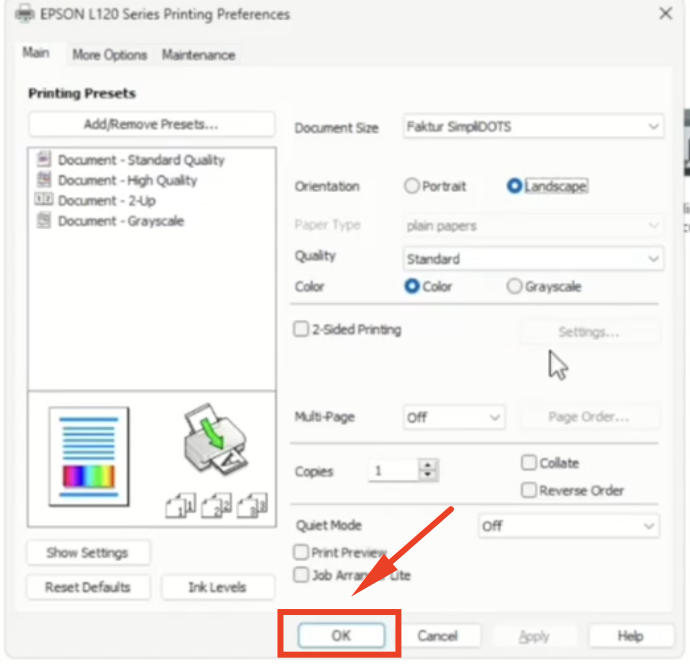

**Step 10:** Klik tombol **OK**.

<figure><img src="/files/hGembXq9JeGg8T18FTfv" alt="" width="518"><figcaption></figcaption></figure>

### Cara Print Melalui Back Office

Misalnya ingin mencetak Sales Order.

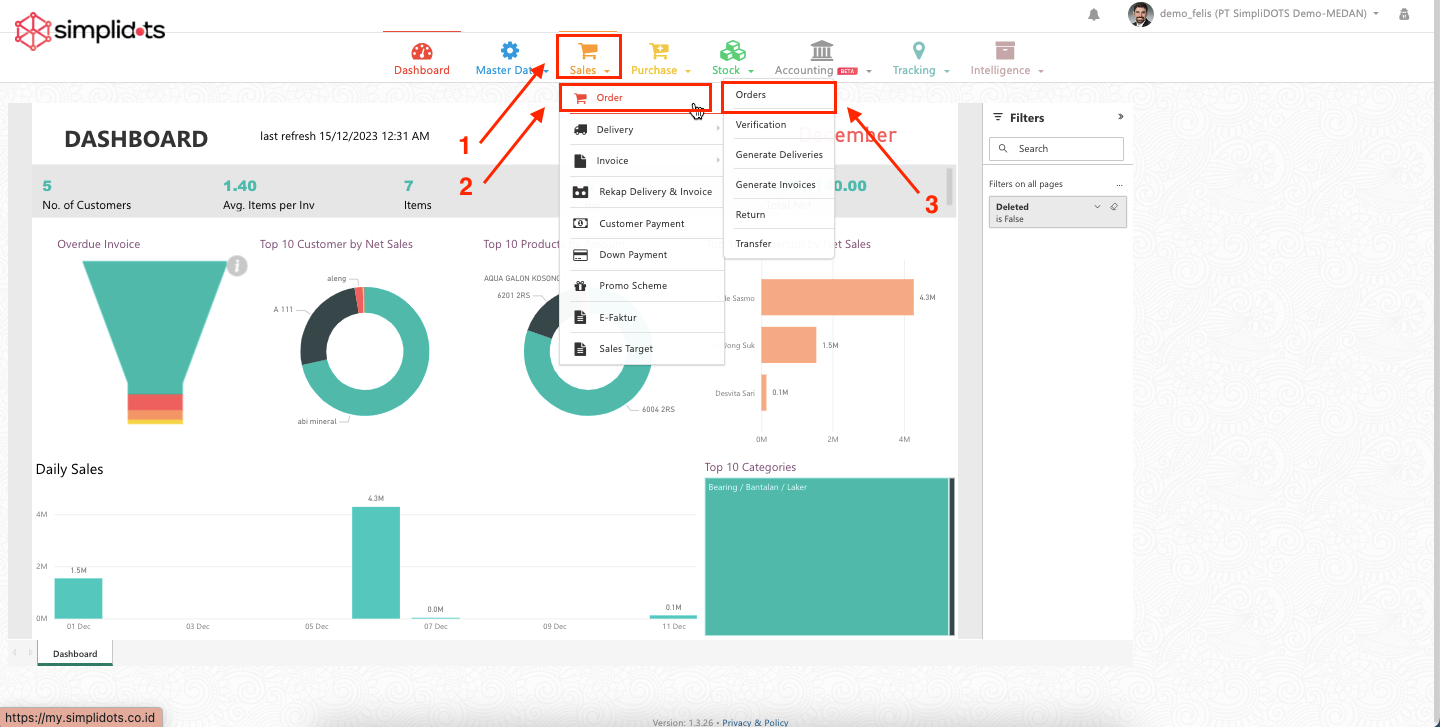

**Step 1:** Masuk ke menu **Sales** > **Order** > **Orders**.

<figure><img src="/files/hPo7z1aHko7bTBFgtEJt" alt=""><figcaption></figcaption></figure>

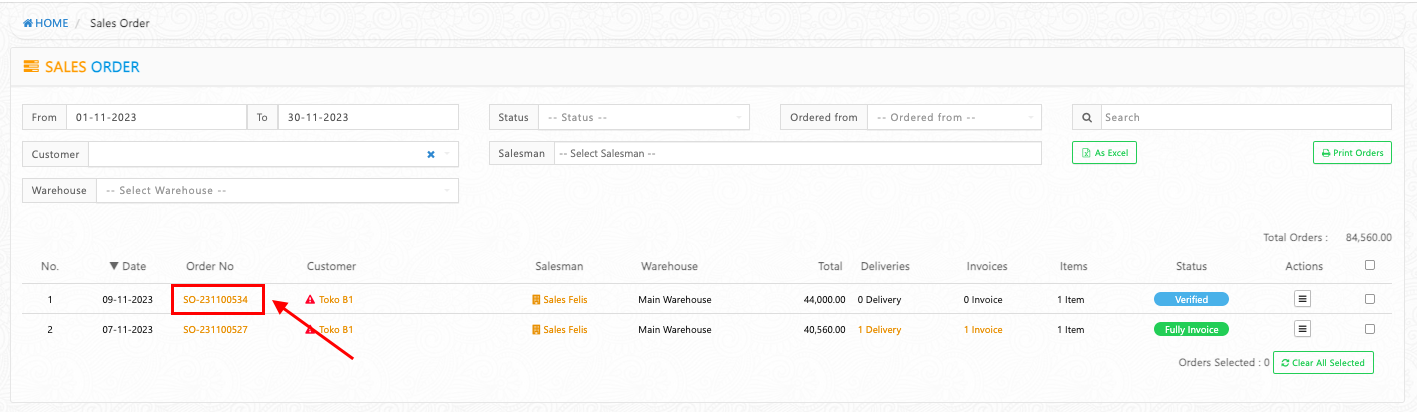

**Step 2:** Klik pada **Order No** yang akan dicetak.

<figure><img src="/files/sVyb3CRsmeXQ56LJQ8n7" alt=""><figcaption></figcaption></figure>

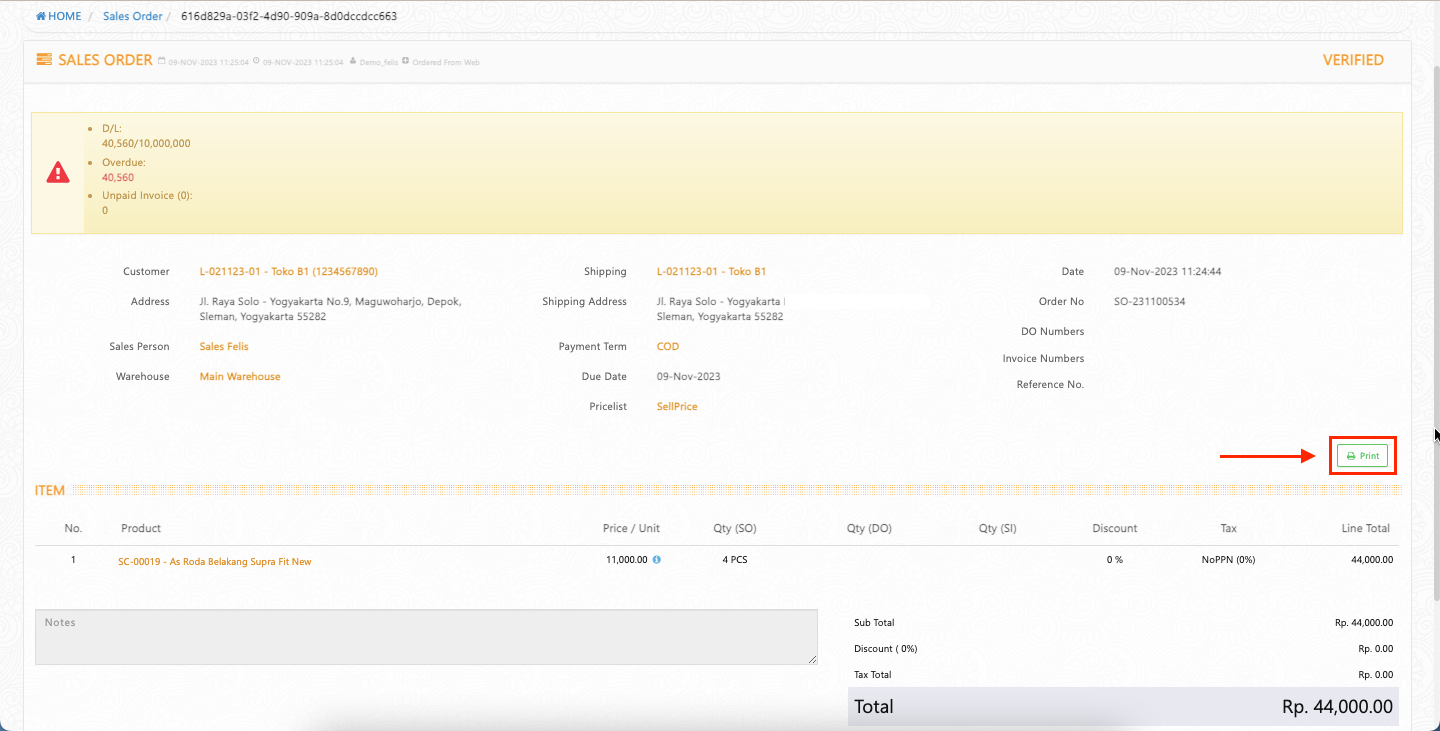

**Step 3:** Klik tombol **Print**.

<figure><img src="/files/k3V2U0i6nEPEFPcZTnJE" alt=""><figcaption></figcaption></figure>

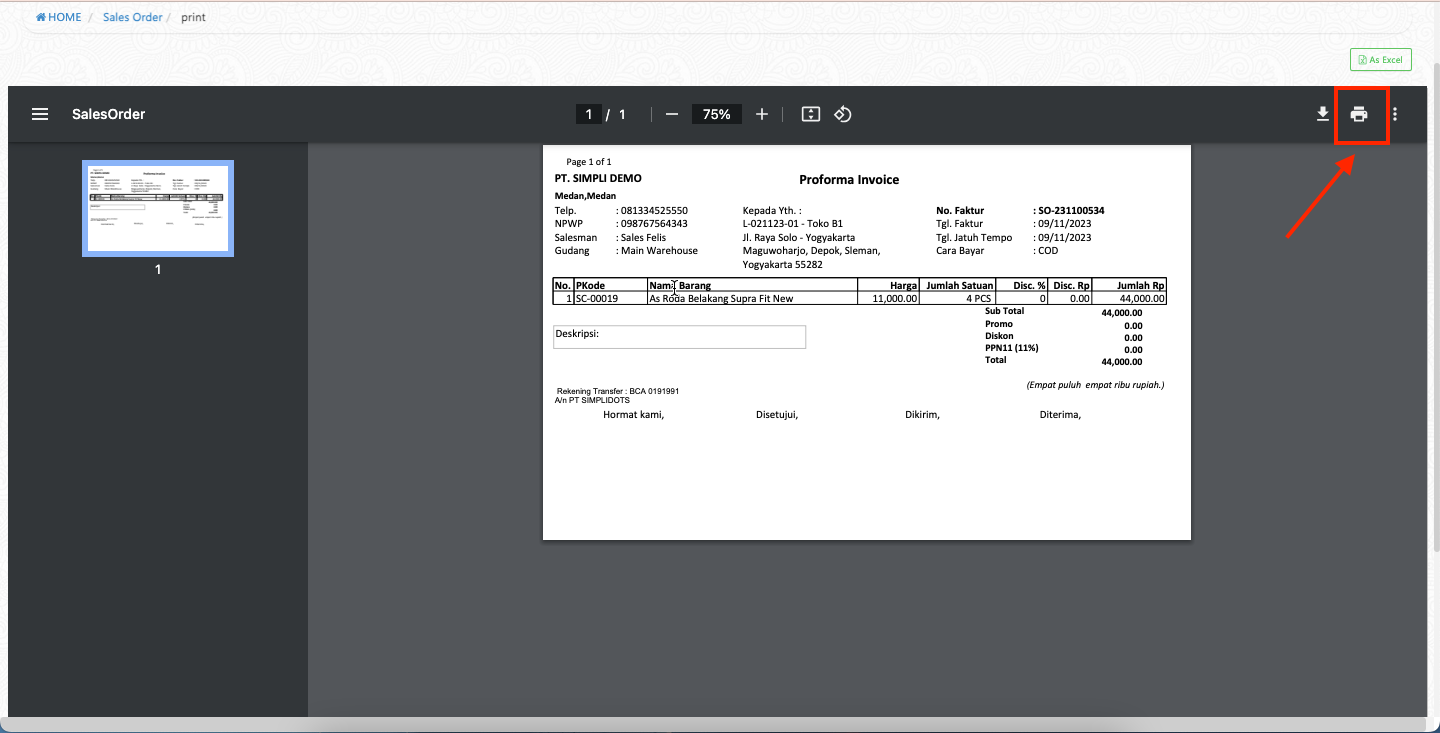

**Step 4:** Klik icon <img src="/files/JA1a9b7OZfGGqTXcTQc0" alt="" data-size="line"> atau **Print**.

<figure><img src="/files/oIYRbQMm3HQtnohPMn1R" alt=""><figcaption></figcaption></figure>

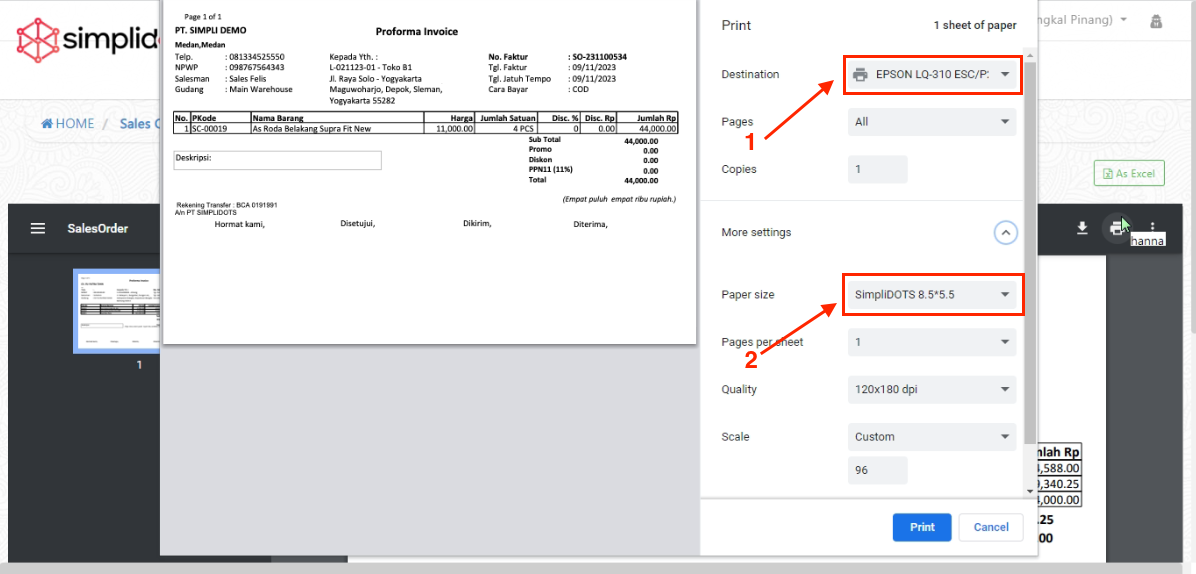

**Step 4:** Pilih **Destination** dan **Paper Size** sesuai yang telah disetting sebelumnya.

<figure><img src="/files/nXYDmpLgnzTYmuIwndOc" alt=""><figcaption></figcaption></figure>

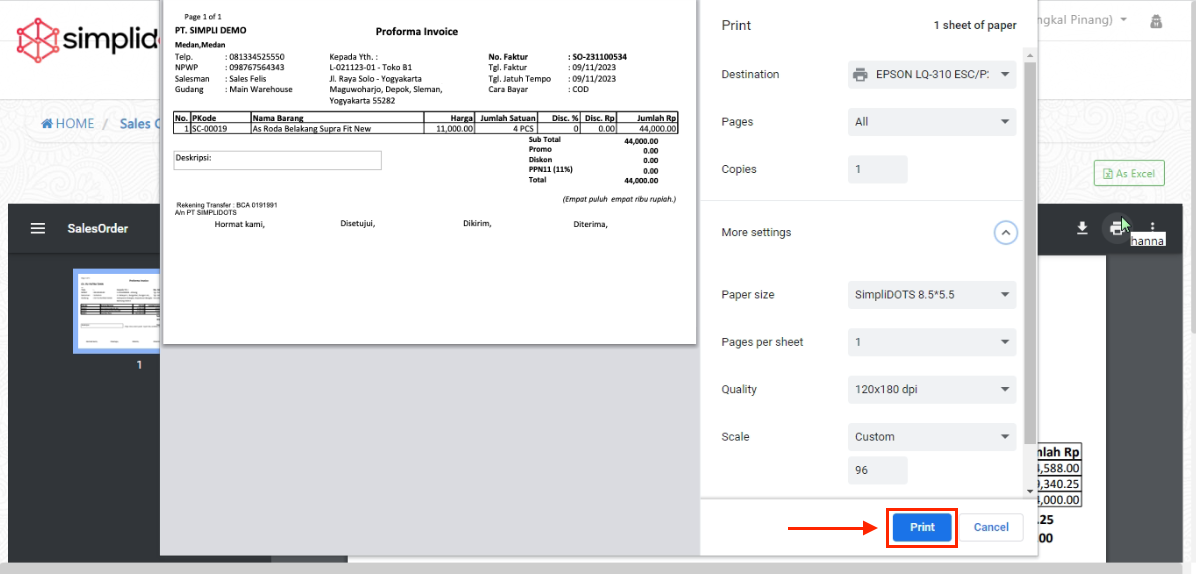

**Step 5:** Klik tombol **Print**.

<figure><img src="/files/0iQMgWTy8xny8xQ6lLQq" alt=""><figcaption></figcaption></figure>

Selamat mencoba, Kawan Simpli :)&#x20;


---
